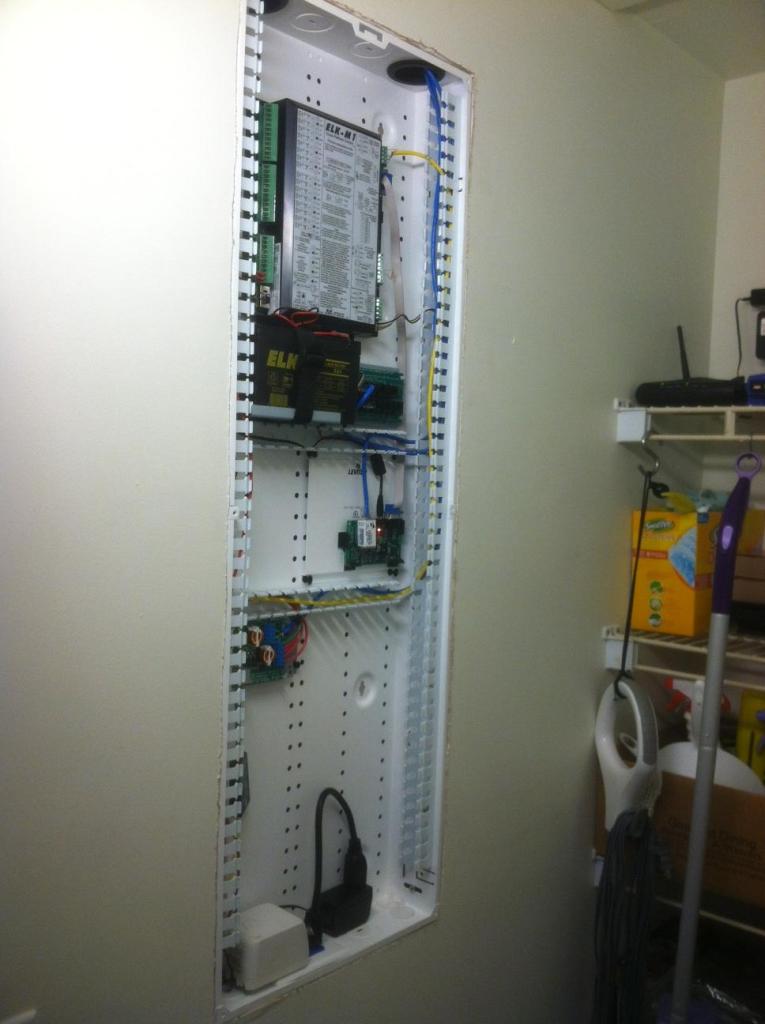

Got the wires a little more organized

Now that I was happy that everything was working fine, I organized the wiring some.

Things still left to do:
- Get the M1XEP running off of the VAUX rather than the wall-wart.
- Mount VAUX, SAUX, and speaker terminal strips on a Leviton security bracket above the M1.
- Install Pulseworx UPB

I wanted to put the covers on the Panduit for the picture, but they are such a pain to get off I decided to wait till I'm 'done'. LOL
