Elk Data Bus Daisy Chain With Home Run Cables
Switch Wiring Diagram1
HV And LV Wire Routing
Elk Data Bus Chaining With Home Run Cables Pg 2
Elk Data Bus Daisy Chain With Home Run Cables
Strange 3 Way wiring adapted To Z wave V2
Strange 3 Way wiring adapted To Z wave
Strange 3 Way switch wiring
R

Elk Data Bus Daisy Chain With Home Run Cables

  • RAL

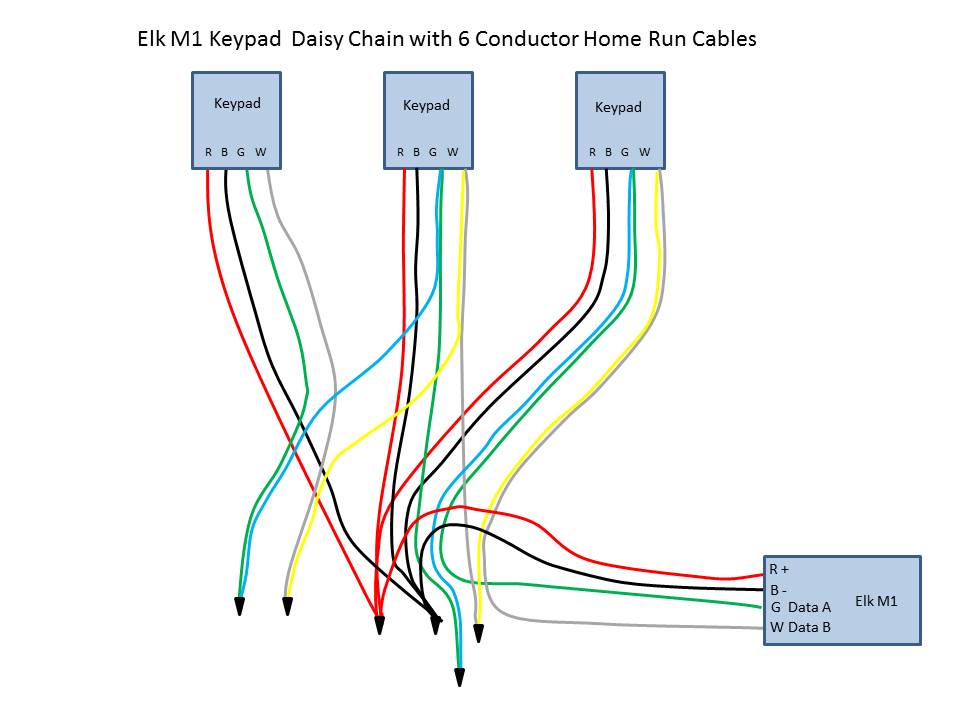

This is a drawing showing how to form a daisy chain for the Elk M1 data bus using 6-wire home run cables to the keypads.
