OMNI II network ports locks-up

[tigers]

I'm experiencing the same issues, I was thinking of some bad caps like someone wrote in the beginning, but it may as well be an ethernet problem, since it may have begun when I changed my old 10 mb switch for a new one.
Is there a way I can look at the logs and see if this may be the problem?
I'm having the same issues I see here: frequent (2/3 times a day) reset of the board, with beeps from the consoles. The only thing I noticed is that is much more likely to happen when the alarm is triggered by opening the door: I can deactivate the alarm just fine, while the ethernet connection goes down and the system sort of soft resets itself.



[pete_c]

Is there a way I can look at the logs and see if this may be the problem?
There is no logging of the OP2 Ethernet port built in to the panel.

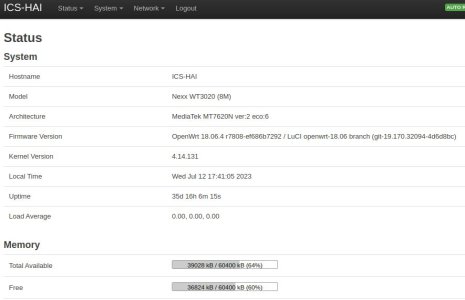

Put a router there. My OpenWRT micro router is doing fine powered by the panel.

BusyBox v1.28.4 () built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt 18.06.4, r7808-ef686b7292
 -----------------------------------------------------
root@ICS-HAI:~#

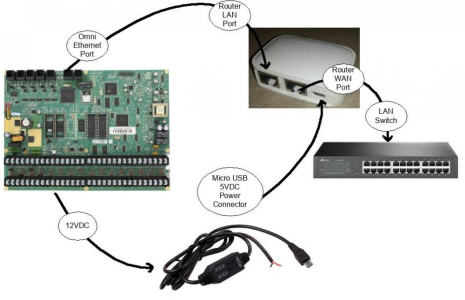

Here is the DIY

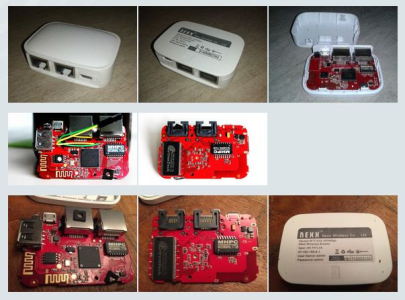

Microrouter DIY for use with the Omni Pro Panel Ethernet port
